Classic Allparts

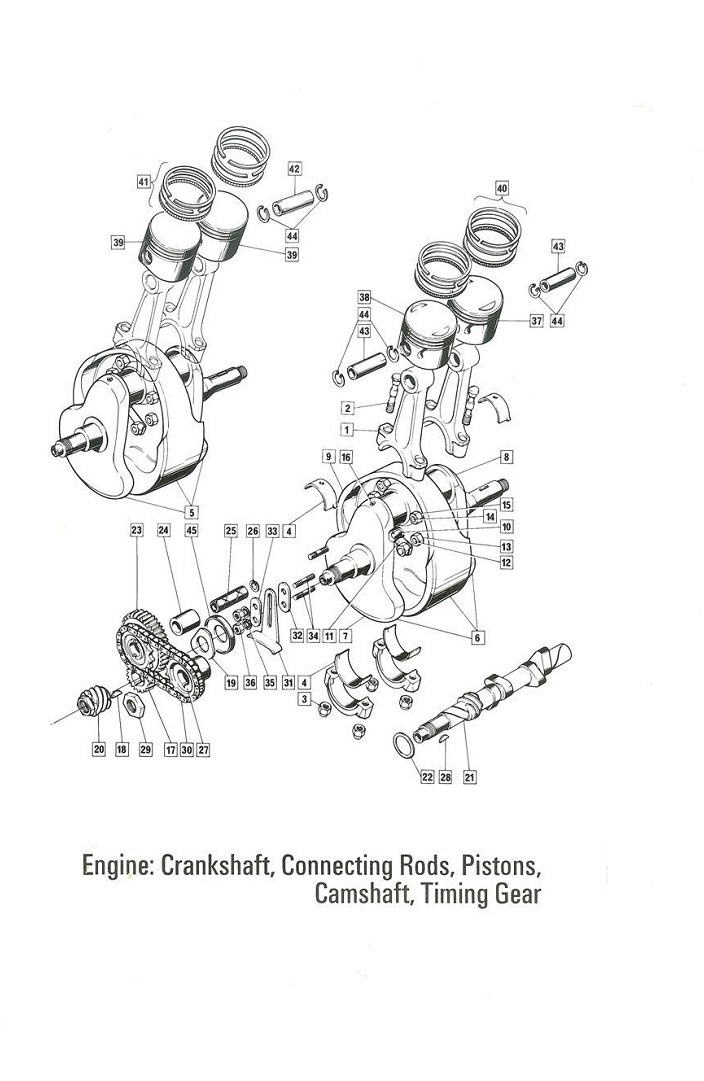

Plate No.

Part No.

Product

Stock
Available

Secondhand
Available

Price

[ 1 ] NM25369 CONNECTING ROD WITH CAP 0 $856.75Each

[ 1 ] 06-4896 CONNECTING ROD ASSY NORTON (NM25369) 0 Y $478.40Each

[ 1e ] NMA2/159 LITTLE END BUSH ES2 2.000 $36.00Each

[ 2d ] T2150 CONNECTING ROD BOLT (DOMI) 8.000 $27.60Each

[ 2 ] 06-6486 CONNECTING ROD BOLT (NM23254) 0 $18.00Each

[ 3b ] 06-7057 PISTON ASSY NORTON 750cc +040 GOOD S/H WITH NEW RINGS HEPOLITE 1.000 $220.00Each

[ 3 ] 06-7827 CON-ROD LOCKNUT (3/8) (NM23253) 0 $9.80Each

[ 4 ] 06-4285 BIG END SHELL STD NORTON 750 / 850 0 $93.00Each

[ 4d ] VP69/010 BIG END SHELL +010 (2PAIR) 1.000 $97.20Each

[ 4 ] 06-4286 BIG END SHELL +010 (SET) NORTON 750 / 850 0 $90.00Each

[ 4d ] VP69/020 BIG END SHELL +020 (2PAIR) 1.000 $97.20Each

[ 4d ] VP69/040 BIG END SHELL +040 (2PAIR) 2.000 $97.20Each

[ 4 ] 06-4288 BIG END SHELL +030 (SET) NORTON 750 / 850 7.000 $99.00Each

[ 4d ] VP69/030 BIG END SHELL +030 (2 PAIR) 3.000 $97.20Each

[ 4 ] 06-4287 BIG END SHELL +020 SET NORTON 750 / 850 GLACIER 0 $108.00Each

[ 5 ] 06-4254 CRANKSHAFT ASSEMBLED 1.000 $748.65Each

[ 11 ] 06-7534 TAB WASHER CRANKSHAFT 10.000 $2.50Each

[ 11 ] 06-7094 CRANKSHAFT STUD / NUT KIT (750CC / 850CC ) 0 $135.00Each

[ 14 ] NMT2031 CRANKSHAFT STUD (WITH NUT) 0 $3.60Each

[ 14 ] 06-5672 CRANKSHAFT STUD (MK3)(06-6607) 3.000 $4.60Each

[ 14 ] 06-7535 CRANKSHAFT BOLT (750)(NMT2033) 5.000 $8.30Each

[ 14 ] 06-7553 CRANKSHAFT STUD (NMT2086) 5.000 $4.50Each

[ 14 ] 06-5671 CRANKSHAFT BOLT (MK3) 4.000 $8.15Each

[ 14 ] 06-5674 CRANKSHAFT STUD (MK3)(06-6609) 0 $6.40Each

[ 15 ] 06-7835 CRANKSHAFT STUD NUT (HIGH 5/16 X 3/8 26 5.000 $4.05Each

[ 15 ] 06-5673 CRANKSHAFT STUD NUT (MK3) 0 $3.00Each

[ 17 ] 06-7537 CRANKSHAFT PINION (NMT2035) 7.000 $99.00Each

[ 18 ] 06-5675 TIMING PINION FLAT KEY (COM, DOM) 000572 18429,E3683,A2/59 22.000 $4.40Each

[ 18 ] 00-0572 CAM KEY (SAME AS TIMING PINION KEY) 0 $5.20Each

[ 18 ] 06-5667 NORTON INT TIMING WHEEL 0 $107.85Each

[ 20 ] 06-7525 TIMING PINION WASHER (NMT2007) 5.000 $13.35Each

[ 21 ] 06-3536 CAMSHAFT WITH BREATHER (25IN) 0 $427.80Each

[ 21 ] 06-1084 CAMSHAFT (STD WITH BREATHER) 0 $511.75Each

[ 21a ] 06-2608 CAM SHAFT NORTON 0 $431.50Each

[ 21a ] 06-7367 CAMSHAFT PETER WILLIAMS TYPE 3 REV COUNTER DRIVE 0 $436.00Each

[ 22 ] 06-2601 CAM THRUST WASHER (EARLY 750) 9.000 $11.50Each

[ 22 ] 06-1086 CAM THRUST WASHER (MK3, LATE) 5.000 $11.50Each

[ 23 ] 06-1077 INTERMEDIATE GEAR (WITH BUSH) 0 $202.40Each

[ 24 ] 06-1079 INTERMEDIATE GEAR BUSH 2.000 $26.00Each

[ 24 ] 06-5669 INTERMEDIATE GEAR BUSH (MK3) 3.000 $13.25Each

[ 25 ] 06-1078 INTERMEDIATE GEAR SHAFT 1.000 $44.30Each

[ 26 ] NM17823 INTERMEDIATE GEAR SHAFT CIRCLIP 8.000 $1.50Each

[ 27 ] 06-1080 CAMSHAFT SPROCKET 6.000 $109.25Each

[ 29 ] 06-7774 CAM SPROCKET NUT 1.000 $8.90Each

[ 30 ] 06-7689 CHAIN CAM SHAFT (NM17806) COMMANDO 0 $28.00Each

[ 30 ] NM17806 CHAIN CAMSHAFT 0 $0.05Each

[ 31 ] 06-7574 TENSIONER SLIPPER (650) 2.000 $24.15Each

[ 31 ] 06-1094 TENSIONER SLIPPER (EARLY, NO PAD) 5.000 $13.80Each

[ 32 ] 06-7575 TENSIONER BACKING PLATE (THIN) (NMT2218) 0 $4.50Each

[ 36 ] 06-2692 NUT 5/16 SAE 4.000 $1.15Each

[ 37 ] 06-7056 PISTON ASSY NOR 750CC +.020") PAIR 1.000 $320.00Each

[ 37 ] 06-7109 PISTON ASSY NOR +030 (73MM) PAIR 0 $270.25Each

[ 37 ] 06-3364 PISTON ASSY NOR 750 +040 GPM (PAIR) 0 $483.00Each

[ 37 ] 06-3347 PISTON ASSY NORTON +040 (73MM) PAIR 2.000 $355.00Each

[ 39 ] 06-3838/060 PISTON ASSY NOR +060 (77MM) PAIR 1.000 $281.75Pair

[ 39 ] N1777 PISTON ASSY NOR STD 850 PAIR 3.000 $327.75Each

[ 39 ] 19342/020 PISTON ASSY NOR HEP ONE ONLY 4.000 $194.55Each

[ 39 ] 06-4041 PISTON ASSY NOR +020 (77MM) PAIR 1.000 $269.00Each

[ 39 ] 06-4042 PISTON ASSY NOR +040 (77MM) PAIR 1.000 $299.00Pair

[ 40 ] 06-7058 PISTON RING SET STD (73MM) 750cc R26260 1.000 $121.00Each

[ 40 ] 06-7062 PISTON RING SET +040 (750) 0 $145.00Each

[ 40 ] 06-7060 PISTON RING SET +020 (750) R26260 2.000 $110.00Each

[ 41 ] R26730/020 PISTON RING SET +020 850 NORTON 0 $102.35Each

[ 41 ] 06-7960 PISTON RING SET +020 (850, 77MM) PAIR 0 $143.55Each

[ 41d ] 06-7135 PISTON RING SET STD NORTON 600CC/650CC 68MM 1.000 $99.85Each

[ 41 ] 06-7226 PISTON RING SET +060 NOR 850 3.000 $143.55Each

[ 41 ] 06-7958 PISTON RING SET STD NORTON 850cc 4.000 $117.00Each

[ 41 ] 06-7225 PISTON RING SET +040 NORTON 850 2.000 $143.55Each

[ 42 ] 06-3842 WRIST PIN (850) 4.000 $22.60Each

[ 44 ] 06-7834 CIRCLIP (HEPOLITE) (NM23276) 20.000 $2.00Each

[ 44 ] 06-7106 CIRCLIP (GPM)(NM23276) FOR PISTON 9.000 $1.50Each

[ 45 ] 06-7526 WASHER NMT2008 3.000 $13.75Each

n/a 06-7095 CRANKSHAFT STUD / NUT KIT NORTON (850 MK3) 1.000 $170.00Each

n/a 06-7879 ROTARY BREATHER DISC 2.000 $14.65Each

n/a 06-7547 STATIONARY DISC ROTARY BREATHER S98. 2.000 $11.00Each

n/a NM17828C BIG END SHELL 030 NORTON JUB&NAV 2.000 $88.00Each

n/a A2/32 BEARING MAIN NORTON & AJS/MATCHLESS. RHP 1.000 $95.00Each

n/a NM17828D BIG END SHELL 040 NORTON JUB&NAV 1.000 $88.00Each

n/a 06-7705 CHAIN MAGNETO C/SHAFT 42 LINK DOMINATOR 2.000 $45.00Each

n/a 06-7559 CAMSHAFT BREATHER SPRING NORTON S139 NMT2108 4.000 $7.00Each

n/a 06-4160 CRANKSHAFT STUD NUT NORTON 50.000 $5.00Each

n/a 06-7137 PISTON RING SET +040 NORTON 600CC/650CC 69MM 1.000 $99.85Each

n/a AA55 PISTON RING SET +040 NORTON ES2 0 $57.05Each

n/a 06-3358 PISTON ASSY NORTON +060 (73MM) PAIR 1.000 $325.00Pair

n/a 06-7224 PISTON RING SET +020 NORTON 850CC 0 $110.00Each

n/a 06-7136 PISTON RING SET +020 NORTON 600CC/650CC 68.5MM 1.000 $99.85Each

n/a 06-7600 GRUB SCREW - C/SHAFT OIL HOLE NME4591 7.000 $2.50Each

n/a 0694/060 PISTON RING SET 66MM +060 NOR DOMI 1.000 $120.00Each

n/a 0694/STD PISTON RING SET 66MM STD NOR DOMI 0 $140.30Each

n/a 0694/040 PISTON RING SET 66MM +040 NORTON DOMI 0 $71.30Each

n/a 06-7138 PISTON RING SET +060 NORTON 600CC/650CC 69.5MM 2.000 $99.85Each

n/a 0694/020 PISTON RING SET 66MM +020 NOR DOMI 1.000 $120.00Each
