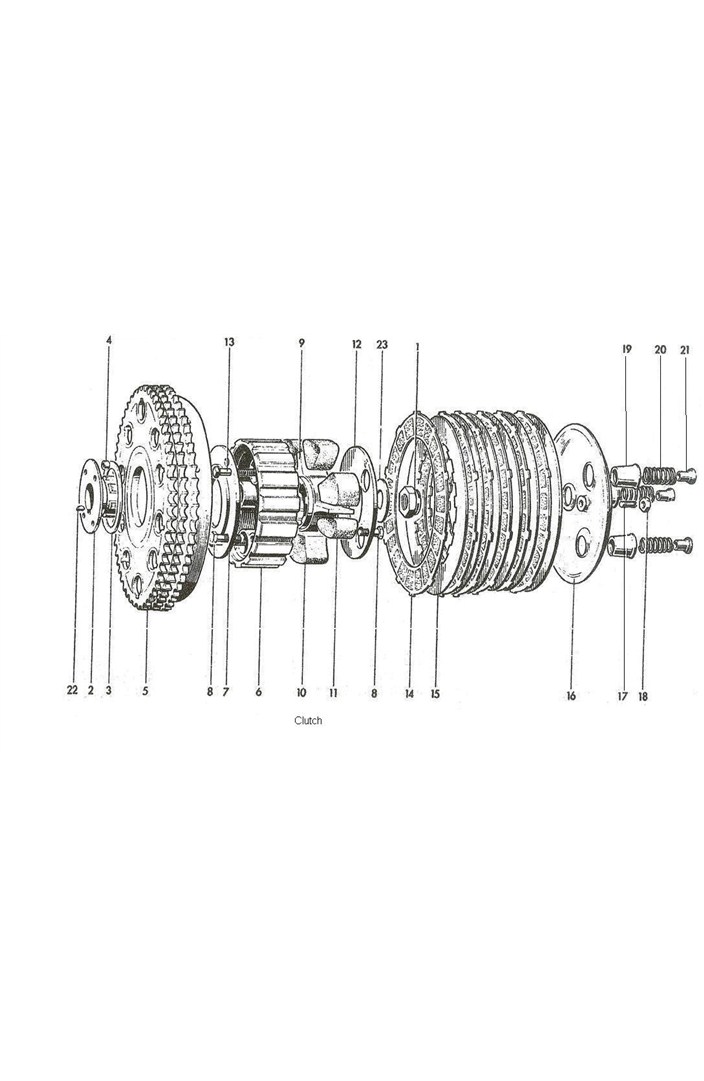

TRIUMPH > CLUTCH

Plate No.

Part No.

Product

Stock
Available

Secondhand
Available

Price

[ 1 ] 57-1047 NUT - GEARBOX & 650 CLUTCH 3.000 $10.00Each

[ 1 ] 14-1307 NUT LOCKNUT 15.000 $6.00Each

[ 1 ] 21-0586 CLUTCH CENTRE NUT LATE 650, T140 (21-0681) 12.000 $6.00Each

[ 2 ] 57-3929 CLUTCH CENTRE HUB TRIUMPH / BSA ENGLISH 3.000 $132.00Each

[ 3 ] 57-1735 THRUST WASHER (EARLY) 2.000 $24.00Each

[ 3 ] 57-3931 WASHER - THRUST WASHER CLUTCH 7.000 $13.00Each

[ 4 ] 57-0394 CLUTCH ROLLER - TRIUMPH NEED 20 183.000 $1.00Each

[ 5 ] 57-4640 CLUTCH CHAINWHEEL TRIPLEX T140 58T 1.000 $110.00Each

[ 5 ] 57-1549 CLUTCH WHEEL- PRE UNIT CLUTCH SPROCKET WHEEL 43T 1.000 $174.00Each

[ 5 ] 57-1570 CLUTCH CHAINWHEEL DUPLEX TRIUMPH 5TA T100 650CC 2.000 $197.00Each

[ 6 ] 57-1719 CLUTCH CENTRE SIX SCREWS FOR PLATES (EARLY) SEE 57-4438 0 $0.10Each

[ 6a ] 57-4435/4 CLUTCH SH/ABSORB ASSEMBLY COM (4 SPRING 0 $247.05Each

[ 6 ] 57-4438 CLUTCH HUB BARE (3 SPRING) BOLTS THROUGH 1972-3 - ON 3.000 $117.00Each

[ 6a ] 57-4435 CLUTCH SHOCK ABSORBER UNIT THREE SPRING COMPLETE 3.000 $310.00Each

[ 6 ] 57-1038 CLUTCH CENTRE 4 SPRING V/EARLY 6 PLATE 0 $110.25Each

[ 6 ] 99-9906 CLUTCH SHOCK ABSORBER COMP (6 PLATE PRE UNIT) 1.000 $308.20Each

[ 7 ] 57-4436 CLUTCH INNER RET PLATE T140 1.000 $40.00Each

[ 7 ] 57-1720 INNER PLATE (EARLY) SEE LATE 0 $43.15Each

[ 7 ] 57-1039 PLATE - RETAINING COSH 4 SPRING BACK 3.000 $83.00Each

[ 8 ] 21-2157 THROUGH BOLT FOR CUSH DRIVE 15.000 $4.00Each

[ 8 ] 57-1040 SCREW - COUNTERSUNK HEAD (EARLY CUSH DRIVE) 1.000 $0.85Each

[ 9 ] 57-1041 CLUTCH SPIDER - 4 PADDLE 1.000 $95.00Each

[ 9 ] 57-4636 SHOCK ABSORBER (SPIDER) 3 SPRING TYPE 5.000 $71.95Each

[ 10 ] 57-1722 RUBBER -CLUTCH DRIVE LARGE 4.000 $4.00Each

[ 10 ] 57-1472 RUBBER - LARGE PRE UNIT CLUTCH 16.000 $5.00Each

[ 10 ] 41-3212 CLUTCH RUBBER/TRIUMPH TR25 T50 31.000 $2.50Each

[ 10 ] 57-1722/3 RUBBER CUSH DRIVE SET 6 PIECES TRIUMPH, BSA. 1.000 $24.00Each

[ 10a ] 57-1722/3POLY RUBBER CUSH DRIVE SET 6 PIECES TRI/ BSA POLYURETHANE 9.000 $36.00Each

[ 11 ] 57-1723 RUBBER - CLUTCH DRIVE SMALL 16.000 $5.25Each

[ 11 ] 57-1473 RUBBER - SMALL PRE UNIT CLUTCH 16.000 $5.00Each

[ 12 ] 57-4437 OUTER PLATE 2.000 $27.95Each

[ 12 ] 57-1044 PLATE RETAINING COSH 4 SPRING FRONT 5.000 $48.00Each

[ 12 ] 57-1724 OUTER PLATE (EARLY) 15.000 $27.95Each

[ 13 ] 57-4754 SCREWED PIN FOR CLUTCH SPRING 7.000 $7.50Each

[ 14 ] 57-4763S CLUTCH PLATE BONDED (SURFLEX) GEN (57-1362) 0 $47.00Each

[ 14 ] 57-4763 CLUTCH PLATE FIBRE TRIUMPH,BSA 650/750 etc 6.000 $28.00Each

[ 14 ] 57-1362A CLUTCH PLATE FIBRE TRIUMPH/BSA ALUMINIUM 0 $16.10Each

[ 15 ] 57-1363 CLUTCH PLATE STEEL TRIUMPH BSA 500,650,750,TWIN 1.000 $17.00Each

[ 16 ] 57-1466AL CLUTCH PRESSURE PLATE (WITH ADJ 4 SPRING) 1.000 $78.10Each

[ 16 ] 57-0986AL CLUTCH PRESSURE PLATE 4 SPRING WITH END CAP 0 $78.10Each

[ 16 ] 57-4590AL CLUTCH PRESSURE PLATE WITH ADJ 3 SPRING (ALLOY) 1.000 $132.00Each

[ 16 ] 57-4590 PRESSURE PLATE 3 SPRING TYPE 1.000 $37.00Each

[ 16 ] 57-986 PRESSURE PLATE P/UNIT WITH CUP CENTRE 4 5.000 $36.80Each

[ 16 ] 57-0986 CLUTCH PRESSURE PLATE 4 SPRING P/UNIT 4.000 $36.80Each

[ 17 ] 57-4189 ADJUSTER PIN EARLY 1/4 DIA (57-1256) 14.000 $5.80Each

[ 17 ] 57-2159 ADJUSTER CLUTCH PIN 3/8IN 3.000 $5.75Each

[ 18 ] 14-0403 NUT, THIN 9.000 $3.00Each

[ 19 ] 57-1931 SPRING CUP - LATE T140, T120, T100, 1"3/8IN 1957 on 8.000 $9.00Each

[ 19 ] 57-1931S SPRING CUP EARLY T140,T120, T100 (SHORT) 16.000 $5.20Each

[ 20 ] 57-1560 CLUTCH SPRING - TRI P/UNIT T120 EARLY 6.000 $4.05Each

[ 20 ] 57-1830 CLUTCH SPRING TRIUMPH 650CC NEED THREE 25.000 $4.50Each

[ 20 ] 57-0999 CLUTCH SPRING P/UNIT 4.000 $5.75Each

[ 20 ] 57-4644 SPRING CLUTCH T140 THREE NEEDED 56.000 $4.00Each

[ 20 ] 40-3231 CLUTCH SPRING/TRIUMPH T20 CUB SEE 57-2727 0 $4.50Each

[ 21 ] 57-2526 NUT - FOR CLUTCH PIN 10.000 $12.00Each

[ 22 ] 60-4253 CLUTCH KEY S66-1 91.000 $4.00Each

[ 23a ] 57-0524 TAB CLUTCH PRE-UNIT (42-3236) 19.000 $4.00Each

[ 23 ] 57-4794 WASHER PLAIN FLAT (0.575 HOLE) 57-2279 3.000 $7.15Each

[ 23a ] 57-1046 WASHER - T120 CLUTCH LOCK WASHER 14.000 $2.45Each

[ 23 ] 57-1045 WASHER DISHED TRI 650 - GEAR BOX MAINSHAFT 6.000 $9.70Each

[ 23 ] 21-7073 WASHER PLAIN FLAT (0.640 HOLE, V/LATE 13.000 $7.15Each

[ 25 ] 60-4578 BEHIND CLUTCH SEAL (RUNS ON BUSH ELY) 4.000 $6.90Each

[ 25 ] 60-3500 OIL SEAL TRI 350, 500 , 750 COVER PLATE 17.000 $5.50Each

[ 25 ] 70-7565 OIL SEAL, BACK COVER PLATE 4 SPEED LATE (68>, 1 1/2IN OD) 9.000 $7.85Each

n/a BELTT01 BELT DRIVE KIT T140 1.000 $615.00Each

n/a BELTT02 BELT DRIVE KIT T120 1.000 $1,000.00Each

n/a BELT11 BELT DRIVE KIT T140 WITH PLATES. 0 $1,255.00Each

n/a 57-4903 CLUTCH ASSEMBLY COMPLETE THREE SPRING,TRIPLEX 0 $880.00Each

n/a 57-0413 CLUTCH ADJUSTMENT SCREW PRE UNIT 3/8" 19.000 $13.00Each

n/a 57-0420 WASHER CLUTCH PRE/UNIT MAIN NUT 16.000 $9.95Each

n/a ALT071 ALLEN SCREW ENG SET T120 63-68 BSF 3.000 $42.25Each

n/a 57-1934 CUP CLUTCH SPRING APPROX 1" 42-3203 4.000 $8.00Each

n/a BELT03 BELT DRIVE KIT PRE UNIT SWING ARM 1954-62 0 $598.00Each

n/a BELTT13 BELT DRIVE KIT PRE UNIT RIGID 0 $598.00Each

n/a 57-2525 SCREW - CL THR PLATE C/SUNK 650 35.000 $1.80Each

n/a 57-0429 CLUTCH SPRING TRI 3TA, 5TA (SHORT) (42-3204) 0 $5.75Each

n/a 57-1472/3 RUBBER CUSH DRIVE SET PRE UNIT CLUTCH 8 PIECES 4.000 $28.00Kit

n/a 57-0394S ROLLERS CLUTCH TRI SET (20) 1.000 $20.00Each

n/a 57-0421 NUT CLUTCH P/U 4.000 $10.35Each

n/a 57-2733 CLUTCH PUSH ROD T25 B25 1.000 $16.00Each

n/a BELT005 SPARE BELT T150 T160 78T X 32MM 0 $139.85Each

n/a PS234 CLUTCH PRESSURE PLATE ALLOY 3 HOLE 0 $61.65Each

n/a BELT001 SPARE BELT T140 80T 32MM WIDE 1.000 $220.00Each

n/a BELT013 SPARE BELT PRE UNIT 101T RIGID 1.000 $171.00Each

n/a BELT002 SPARE BELT T120 80T 25 MM 1.000 $161.00Each
